LumiBlade Brite 3

Available: 3000k + 4000k

Buy Developer’s Kit View Tech Specs
Brite 3

Up to LT70 of 100,000 hours and up to 300 lumens and 85 lm/W

1.4 mm to 2.1 mm thin

90+ CRI and R9>50

Brite 3

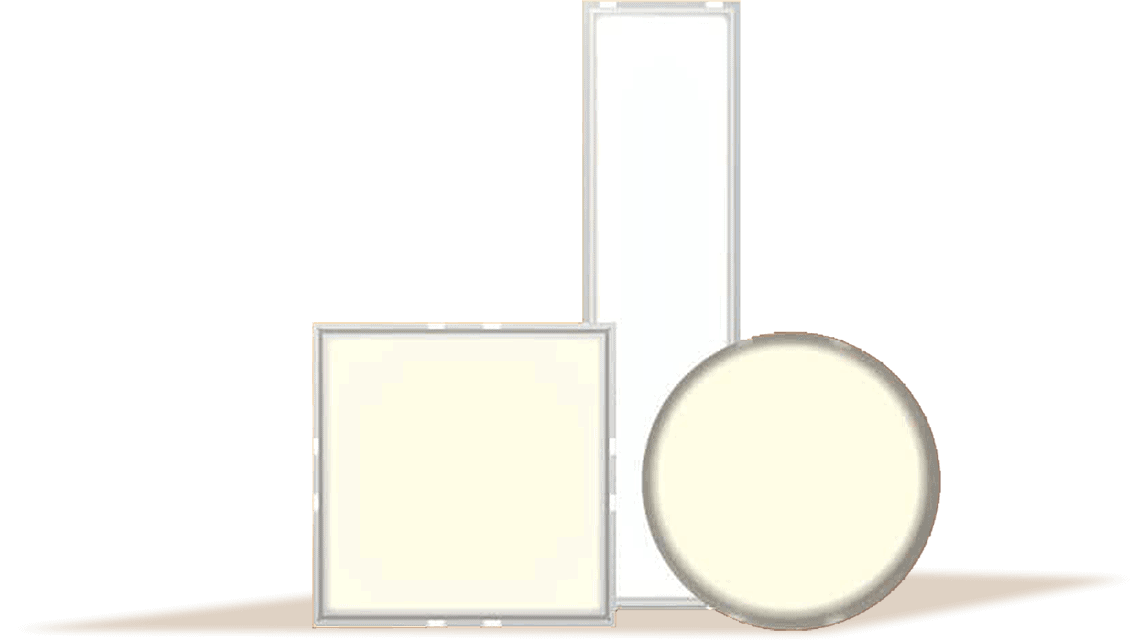

The LumiBlade Brite 3 products come in three different sizes: square, rectangular and round.

With an efficacy of more than 80lm/W for the rigid square, rectangular and round panels, and a lifetime of up to 100,000 hours, we bring OLED lighting further into functional lighting applications.

The LumiBlade Family is the third generation of rigid Brite OLED lighting panels and are commercially available in two different color temperatures, warm white 3000K and neutral white 4000K, CRI > 90 and in three different integration levels. With the luminous flux of up to 300 lumens the Brite products are still the brightest OLED panels commercially available.

Buy Developer’s Kit

Why OLED?

OLED lighting creates a whole new world of opportunities for working with light. OLED is a solid-state lighting technology that has many benefits over traditional options. It is a premium light source that’s as elegant as it is functional and easy to use. The benefits of OLED include:

Design

  • Ultra-thin
  • Featherweight
  • Flexible
  • Cool-to-touch
  • Glass
  • Segmentation
  • 90+ CRI

Health and Well-Being

  • No blue light risk
  • No UV
  • Safe for eyes and skin
  • Circadian rhythm friendly
  • Glare-free
  • No flicker
  • Naturally diffuse

Sustainability

  • Made of 85% recyclable components
  • Mostly organic and glass materials
  • No toxic substances – RoHS compliant
  • Energy efficient
  • No thermal heat sink
  • Compact profiles
  • Reduced manufacturing footprint

Tech Specs

Square & Rectangular
Warm white At 8500 cd/m² At 3000cd/m²
Lumens 300 100
Efficacy (Lm/W) 75 85
CCT (K) 3000 3000
CRI >90 (R9 >50) >90 (R9 >50)
Lifetime (K hrs) 30 100
Neutral white At 7000 cd/m² At 3000cd/m²
Lumens 250 100
Efficacy (Lm/W) 57 61
CCT (K) 4000 4000
CRI >90 (R9 >75) >90 (R9 >75)
Lifetime (K hrs) 30 100



Round
Warm white At 8500 cd/m² At 3000cd/m²
Lumens 200 65
Efficacy (Lm/W) 75 85
CCT (K) 3000 3000
CRI >90 (R9 >50) >90 (R9 >50)
Lifetime (K hrs) 30 100
Neutral white At 7000 cd/m² At 3000cd/m²
Lumens 165 65
Efficacy (Lm/W) 57 61
CCT (K) 4000 4000
CRI >90 (R9 >75) >90 (R9 >75)
Lifetime (K hrs) 30 100
